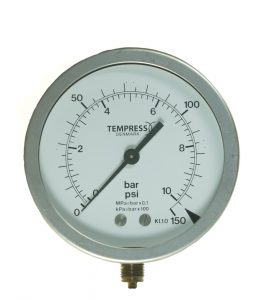

Pressure Gauge DN100 Type A09 Refrigeration

Pressure Gauge DN100 Type A09 Refrigeration

  • Liquid filled to damp pulsations and give extra long life
  • Direct, surface or panel mounting
  • Connection: bottom and rear
  • Long term stable
  • Scale in accordance with international standards

Title 1

Title 2

Title 3

Title 4

Title 5

Specifications

Size DN100
Type A0903
Case, material
Front glass
AISI304
Tempered safety glass
Liquid filling Glycerine
Connection G1/2B, AISI316
Others on request
Measuring system AISI316
Measuring range



From – 1 Bar through 60 Bar



Min. span: 1 bar

Accuracy Cl. 1.0 (± 1,0% FS)
Measuring units Multiscale: Bar/PSI Others on request

Pressure Gauge DN100 Type A09 Refrigeration

APPLICATION

The gauge series is well suited for applications in any industrial or maritime environment where local indication is required.

TEMPRESS DESIGN

From the front, the gauge matches the rest of the TEMPRESS product program. This gauge type offers the flexibility to choose a special scale or customer logo, even for smaller quantities.


Standard articles

Click on the article to automatically insert into the contact form below

To view our standard articles please visit from a desktop

No items found.

Single contact

(1 contact point)

Avaliable contact types:

KN,KM,KE and KI

Contact Function : Break

1

Contact Function : Close

2

Contact Function : Shift

3

Contact Function Separate Circuits : Break

4

Contact Function Separate Circuits : Close

5

Double contact

(2 contact points)

Avaliable contact types:

KN,KM,KE and KI

Shift contact

(2 contact points switch function)

Avaliable contact types:

KN and KM

Double contact

(2 contact pointers seperate Circuits)

Avaliable contact types:

KN and KM

Triple contact

(3 contact pointers)

Avaliable contact types:

KN and KM

Triple contact

(3 contact pointers)

Avaliable contact types:

KN and KM
